ELinOS as PikeOS Guest OS

Among many other guest operating systems, the real-time operating system and hypervisor PikeOS can run the embedded Linux ELinOS as a guest OS. This enables real-time capable target devices that also benefit from typical Linux features such as graphical support, large amount of network services and protocols. ELinOS as a guest system also serves as a basis for reusable code and binaries and thus has the potential to save development time.

ELinOS on PikeOS

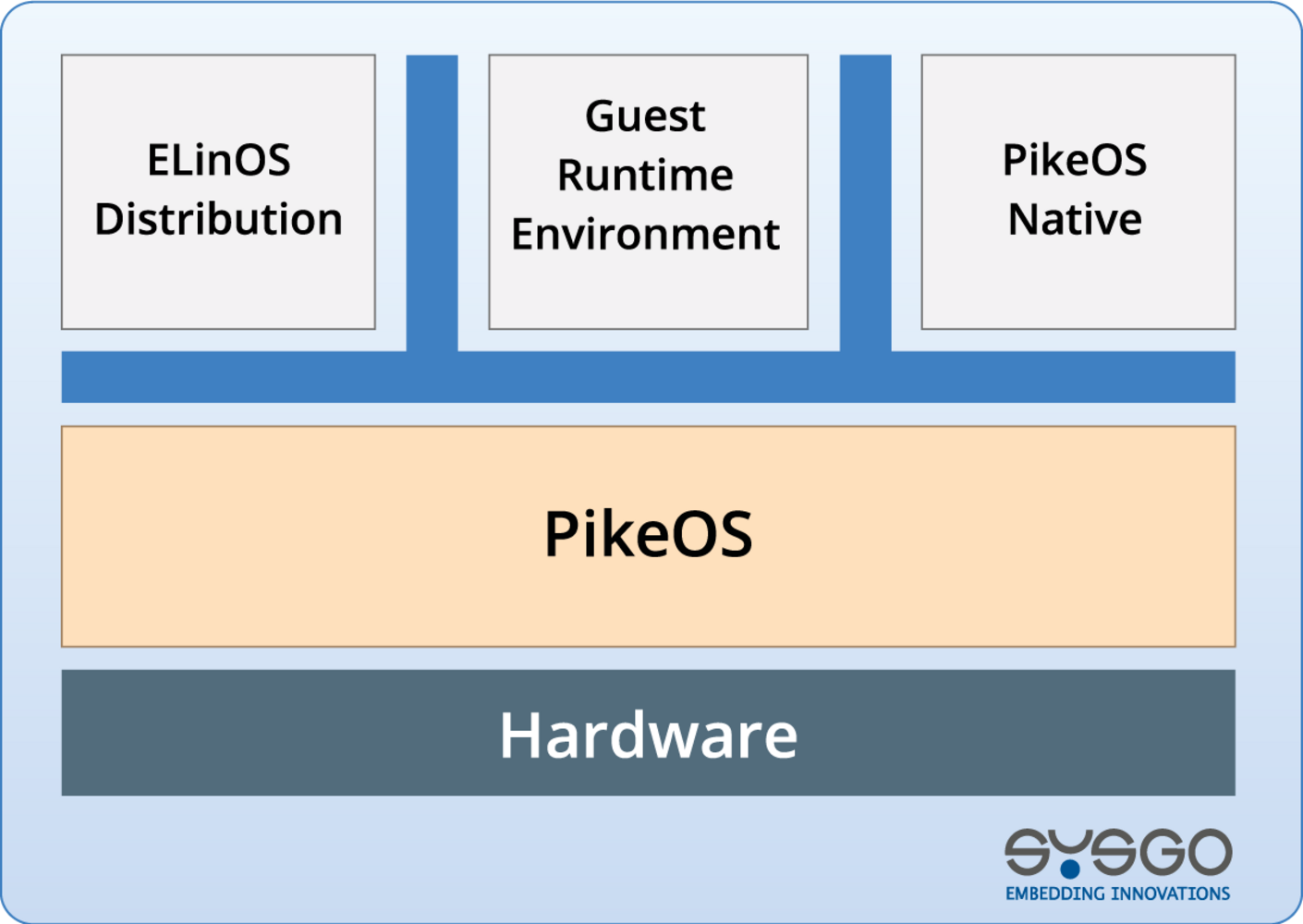

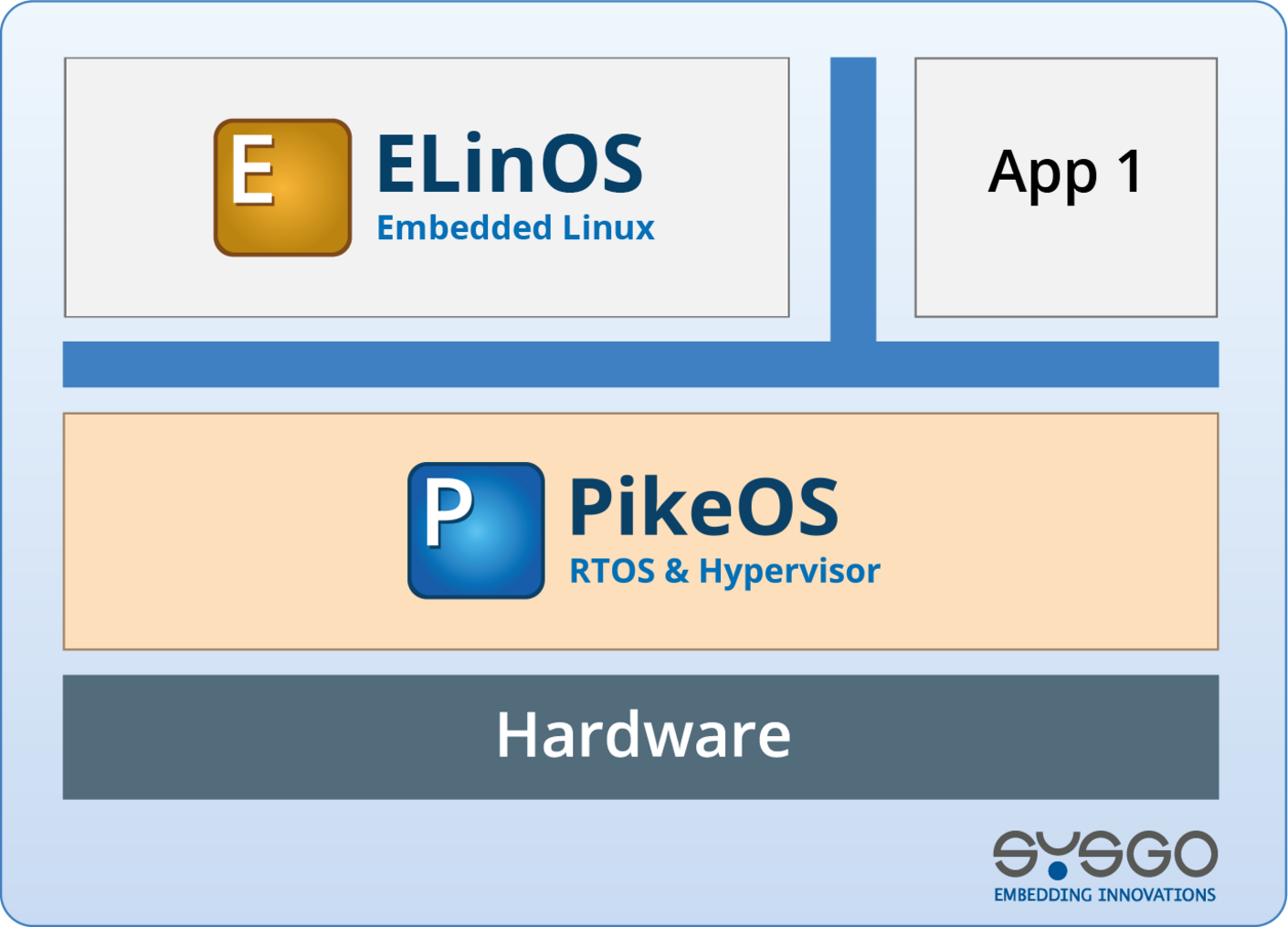

ELinOS can run as guest operating system in a partition on top of PikeOS. A partition is a separated environment in which different application programming interfaces (API), runtime environments or guest OSs can reside. Partitions (and software within the partitions) are strictly separated per default. Since guest OSs are executed inside partitions, it is possible to run uncertified (unsecure) guest OSs in parallel with certified (critical) applications in other partitions.

An application suite provides the tools and materials needed to develop software using the respective API, runtime environment or guest operating system within a PikeOS partition. The resulting ELinOS partition image can be integrated into PikeOS and executed, analyzed and debugged.

Setting up ELinOS as Guest OS

The comparatively short setup time reduces the time-to-market and makes this interesting for systems that need hard real-time, mixed criticality and the extensive extension possibilities of a mighty yet lightweight Linux system.

PikeOS allows the execution of guest operating systems in two modes:

1. Para-Virtualization

2. Hardware Virtualization

While the first mode runs on each supported PikeOS architecture without requiring hardware virtualization support, it requires the guest operating system to be modified. The changes are mostly related to memory management at architecture level. The second mode does not require modification of the guest operating system, but the configuration can be a bit more tricky. Due to the hardware virtualization the performance is better compared to the para virtualization when it comes to system call, exception and interrupt handling.

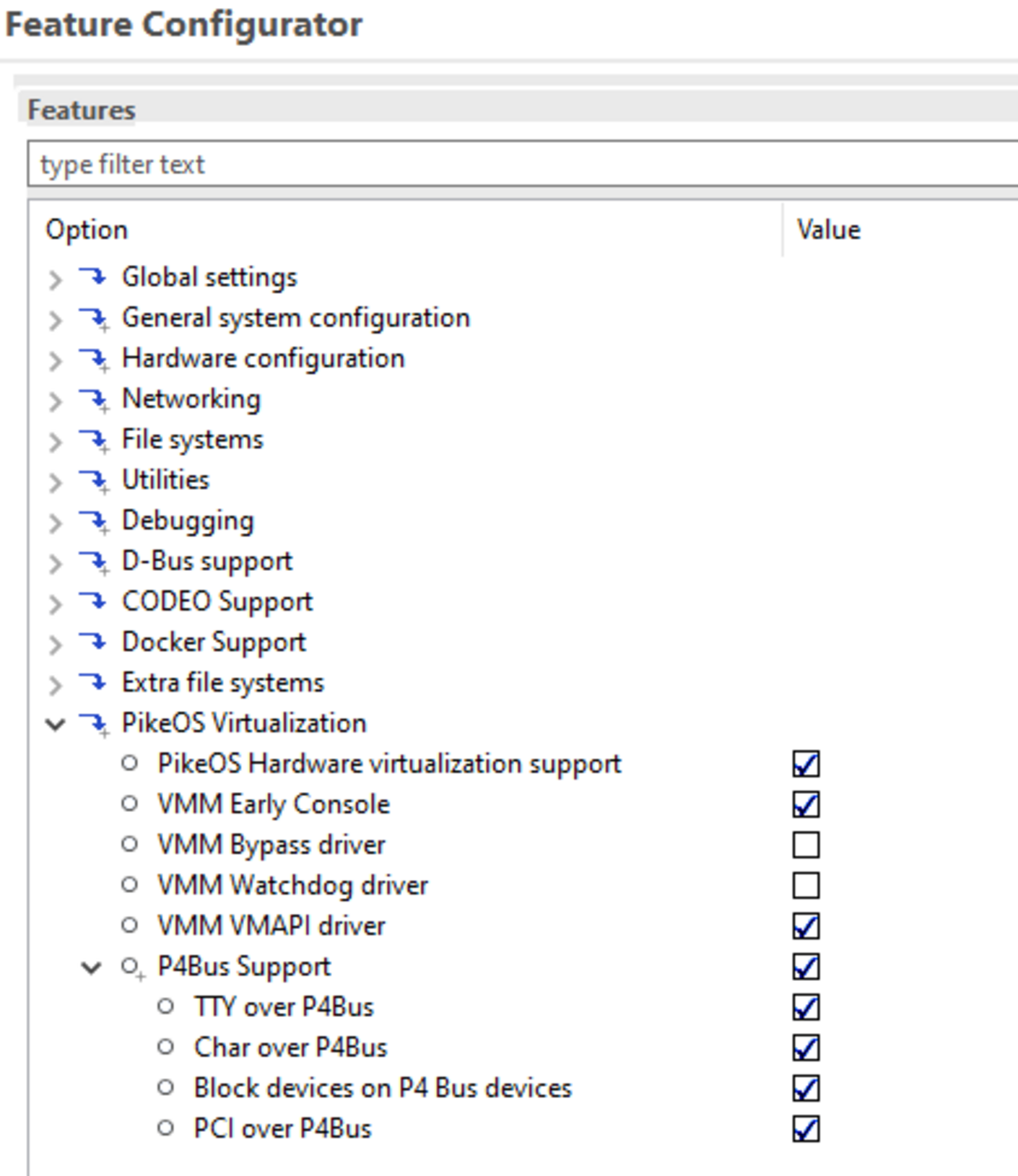

In terms of Linux, the kernel needs to be patched for para virtualization. In case of the hardware virtualization, usually the device tree provided to the boot loader needs to be tweaked a bit. Apart from that, any Linux distribution can be run on top of PikeOS. The only pre-condition is that the distribution supports the target architecture.

Customer Benefits

Check

Development Environment

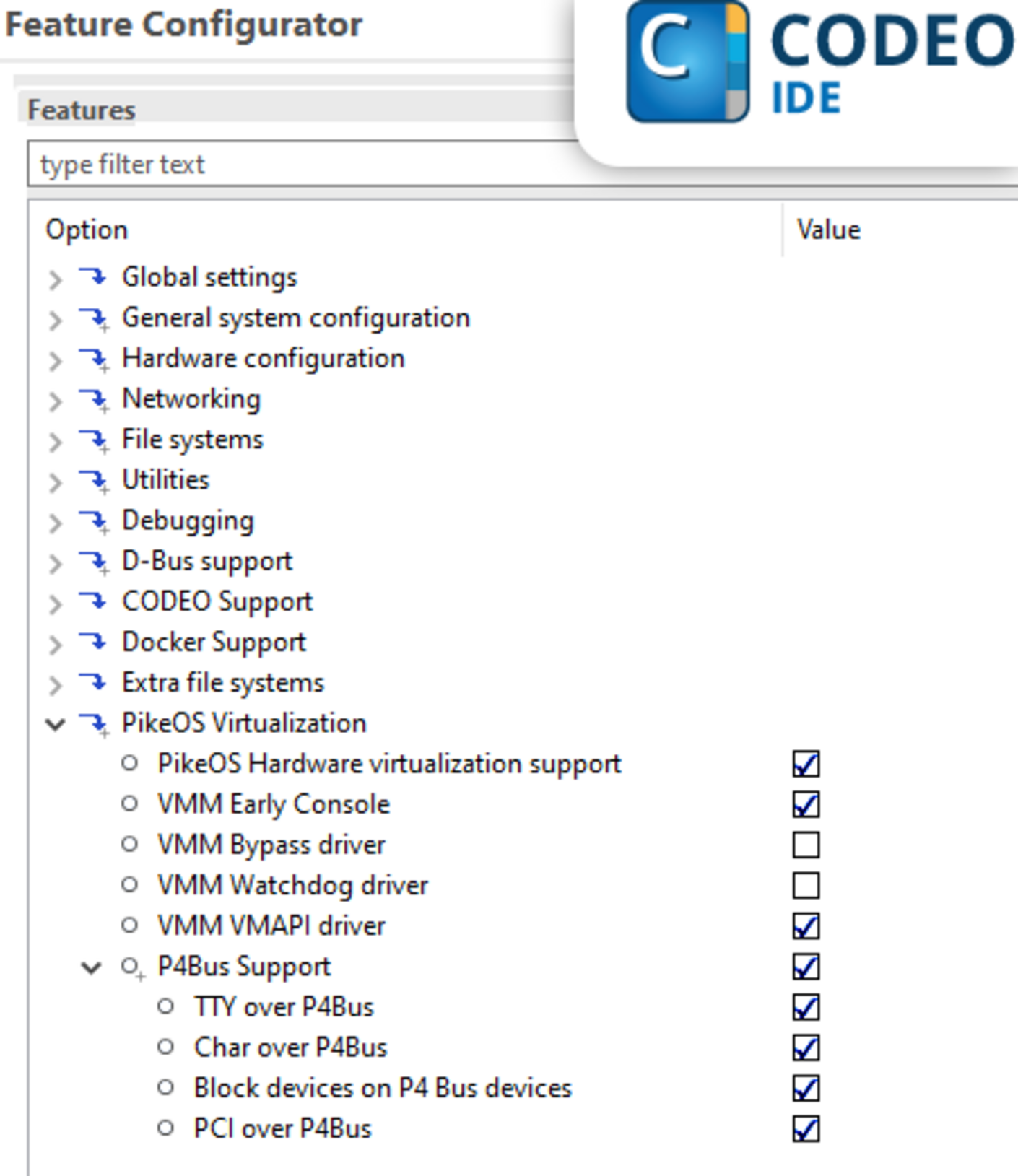

Everything under one hood: CODEO IDE. The tools for PikeOS and ELinOS have the same look and feel and follow the same user-centric philosophy

Check

Board Support Packages

ELinOS already provides BSPs for all variants of the PikeOS virtualization. The build system automatically chooses the right kernel for the correct architecture you have chosen

Check

Advanced Drivers and Settings

Available for the PikeOS integration: These comprise the ARINC 653 queuing and sampling port API, PikeOS file providers, MTD (Memory Technology Device) drivers, shared memory and partition control
